2685 kg
Engine Model
Kubota D1305
Engine Power
18.5 kW
Bucket Capacity
0.06 cubic meter
Technical details
Engine:
Max. Torque: 81.4 Nm
Engine Emission: Stage V
Max Digging Depth:
2515 mm

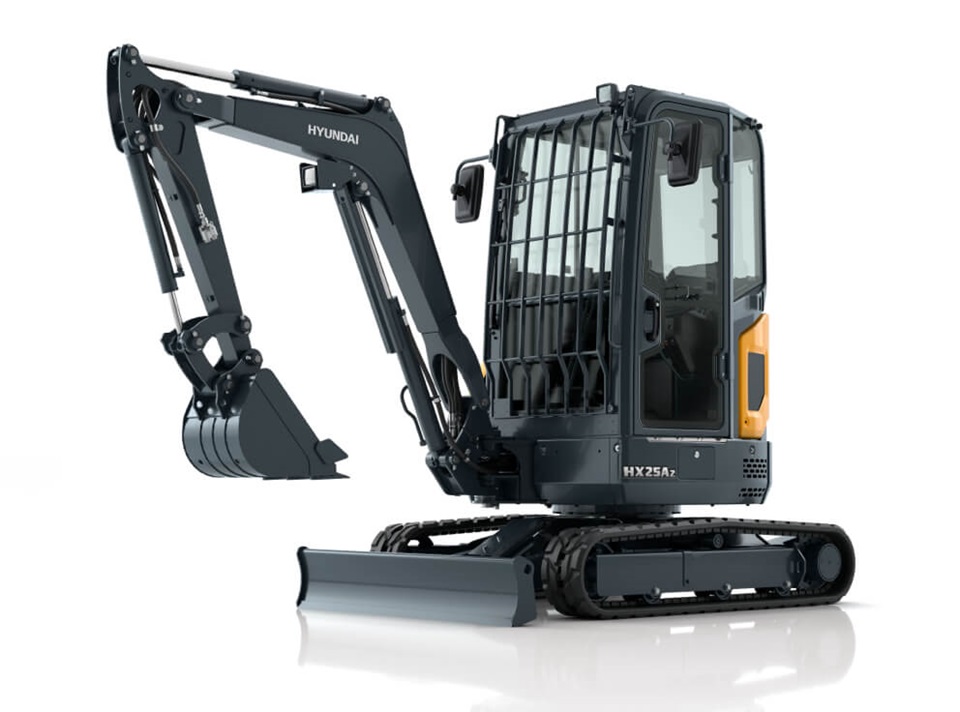

Product Overview
Boasting an impressive all-new design with zero tailswing, this 2.5 -tonne machine is easy to transport. And with a brand new, efficient Stage V engine, it is perfect for applications where more power is needed. The HX25A Z is also available with a quick coupler fitting, for easy attachment changes to further increase your productivity.
Reasons to choose the HX25A Z
Breaking standards in comfort & controllability
The HX25A Z cabin and canopy machines have been designed with operator comfort and convenience in mind, with spacious interiors and reduced sound levels.
- A new 5-inch full colour LCD display monitor allows easy control of excavator settings and critical functions.
- The monitor is also IP68 waterproof, especially important if working in a canopy model.
- Optimised ergonomics and advanced features allow you to work with greater ease and efficiency.
- Auto-shift travel speed allows for seamless transitioning between high and low travel speeds, allowing the operator to focus on the task at hand.
- Enjoy greater operability with a dozer blade lever and drive speed switch.
Breaking standards in safety
The HX25A Z compact excavator has the highest levels of safety standards, with state-of-the-art features that protect both operator and machine alike.
- Auto-safety lock prevents unintentional ignition and machine movement.
- Overload warning gives an audible and visible alarm when there’s too much weight being lifted.
- Anti-theft system includes a password protected ignition key, to prevent the engine from starting.
- Safety valves on the boom, arm and dozer blade cylinder ensure safe digging or lifting with the blade down, even in case of a sudden pressure drop.
- New cylinder and hose guards as standard provide increased protection.
Breaking standards in mobility

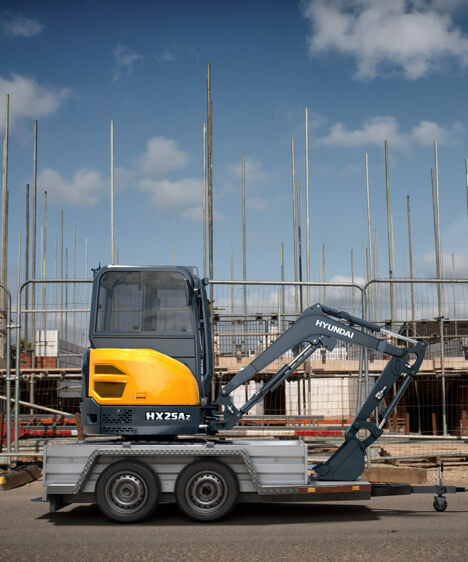

With a compact zero tailswing design and low weight, the HX25A Z can be easily transported on any small trailer.
- Low 2610 kg weight saves paying for additional transport costs.
- Transport along with a quick hitch, a breaker and 3 buckets without exceeding the regulatory weight limit.
- Zero tailswing design allows for quick trailer loading to save time.
Breaking standards in productivity and performance
With zero tailswing and a brand-new Stage V engine, benefit from increased productivity with reduced costs.
- True zero tailswing with no rear overhang enhances manoeuvrability and safety, while minimising damage.
- New efficient Stage V engine delivers 18.5 kW (24.8 hp) gross power.
- Available with quick coupler fitting for easy attachment changes.
- 2-way auxiliary piping as standard. Single or double acting mode can be selected by the operator.
Breaking standards in serviceability
Robust structures and attachments plus easy access for maintenance and cutting-edge telematics contribute to low total cost of ownership.
- A tiltable cabin and a new cowl layout maximise uptime and keep service work to a minimum.
- HiMATE, Hyundai’s remote management system, utilises GPS satellite technology to provide the highest level of service and product support available.
- Our upgraded attachments are designed to withstand the toughest work environments with reinforced steel components and advanced welding.
FAQs about the HX25A Z compact excavator
Does the HX25A Z comply with the European stage V emission levels?
Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations
Does the HX25A Z integrate with Hi Mate?
Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.
What is the operating weight of the HX25A Z?
The operating weight is 2685 kg.
Is the HX25A Z zero tail swing?
Yes. The HX25A Z is a true zero tailswing excavator which eliminates the rear overhang, allowing it to rotate freely within its own footprint.
Can the HX25A Z be towed on a trailer?
Yes. The HX25A Z is light and compact enough to be be towed on a trailer.
