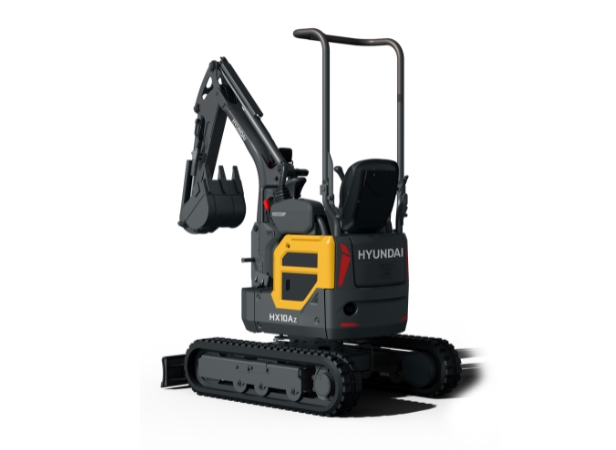

Introducing the new 1-tonne HX10A Z, the smallest A-Series mini excavator in the range. It benefits from a brand-new Stage V Kubota engine, delivering 7.6 kW (10.35 hp) gross power. With greater lifting capacity and traction force, leading to fast cycle times, this compact, zero tailswing machine is designed to be powerful yet efficient.
Operation Weight
1165 kg
Engine Model
Kubota D722
Engine Power
7.6 kW
Bucket Capacity
0.02 cubic meter
Technical details
Engine:
Max. Torque: 39.4 Nm
Engine Emission: Stage V
Max Digging Depth:
2205 mm
Discover the HY10A Z Mini Excavator
The Hyundai HX10A Z is a compact 1-tonne mini excavator designed to deliver powerful performance in the tightest spaces. Combining a fuel-efficient Stage V engine with strong breakout force, extended reach and smooth hydraulics, it maximises productivity on every job. Operator comfort, intuitive controls and excellent visibility ensure easy, precise operation throughout the day. Built with durability, safety and easy maintenance in mind, it’s a reliable solution for urban, indoor and restricted-access work.
Reasons to choose the HX10A Z
Breaking standards in comfort & controllability
With low noise and vibration levels, combined with intuitive controls and smart design features, the Hyundai HX10A Z mini excavator delivers smooth operation and all-day operator comfort, even in demanding environments.
- Swivel and tilting control consoles improve operator posture and help reduce fatigue during long working hours.
- Dual pedals for boom and auxiliary functions, along with the adjustable dozer blade control, give operators complete and responsive control in every application.
- Boom and arm cylinder cushioning reduces shocks and vibrations, ensuring smoother and more comfortable operation.
- Low noise and vibration levels make the machine ideal for indoor demolition and residential job sites.
- The extendable undercarriage allows quick adjustment from 730 mm to 1,100 mm, providing enhanced stability when needed.
- Easy-to-use controls, including track width adjustment, travel speed selection and engine speed lever, allow quick adaptation to different tasks.
Breaking standards in safety
Safety is at the core of the Hyundai HX10A Z mini excavator, combining robust design, excellent visibility and smart features to protect both operators and surrounding environments in even the most confined spaces.
- The foldable TOPS canopy can be lowered without tools and is integrated into the upper structure, allowing safe access through narrow spaces and doorways.
- A sturdy canopy structure provides enhanced operator protection when working in tight or restricted environments.
- The blade and undercarriage are designed to maximise stability during grading and stationary tasks, improving overall safety on site.
- The compact design ensures excellent all-round visibility, supported by an LED boom working light for safer operation in low-light conditions.
- A swing lock pin prevents unwanted upper structure movement during transport or when parked on uneven ground, reducing the risk of accidents or damage.
Breaking standards in efficient performance
The Hyundai HX10A Z mini excavator delivers serious performance in a truly compact, zero tailswing design. Powered by a Stage V Kubota engine, this 1-tonne micro excavator is built for efficiency, precision and productivity in tight urban, indoor and restricted-access environments. With enhanced lifting power, breakout force and hydraulic efficiency, it’s engineered to get more done in less time.
- 31% greater traction force improves pushing and grading performance, helping achieve faster cycle times on site.
- The 7.6 kW (10.35 hp) Stage V Kubota engine delivers strong digging, lifting and grading performance while maintaining fuel efficiency.
- Up to 30% higher bucket breakout force allows the machine to handle tougher materials with ease.
- The longer boom and arm design increases reach and dump height, reducing the need for repositioning and improving productivity.
- The open-centre hydraulic system with variable displacement pumps provides smooth, responsive control while maximising efficiency.
Breaking standards in serviceability & telematics
The Hyundai HX10A Z mini excavator is engineered for easy maintenance and long-term reliability, with smart design features that reduce downtime, protect key components and keep your machine working efficiently.
- The cylinder-over-boom design protects critical components from impact damage when working in tight or confined job sites.
- Optimised hydraulic hose routing reduces wear and minimises the risk of accidental damage, helping to lower downtime.
- A robust box-structure frame delivers high strength and durability while keeping overall machine weight to a minimum.
- A lockable cap provides secure and convenient access for routine maintenance checks.
- Additional arm and bucket guards help protect vulnerable areas, reducing repair costs and extending machine life.
- A high-performance cooling system maintains optimal operating temperatures, even when working in confined or demanding conditions.
FAQs about the HX10A Z compact excavator
Does the HX10A Z comply with the European stage V emission levels?
Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations
Does the HX10A Z integrate with Hi Mate?
Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.
What is the operating weight of the HX10A Z?
The operating weight is 1165 kg.
Is the HX10A Z zero tail swing?
Yes. The HX10A Z is a true zero tailswing excavator which eliminates the rear overhang, allowing it to rotate freely within its own footprint.
