6065 – 6485 kg
Engine Model
Hyundai DM02VB
Engine Power
48.5 kW
Bucket Capacity
0.18 cubic meter
Technical details
Engine:
Max. Torque: 248 Nm
Engine Emission: Stage V
Coolant & Lubricant Capacity:
Hydraulic System (including tank): Open Centre Hydraulic System
Product Overview

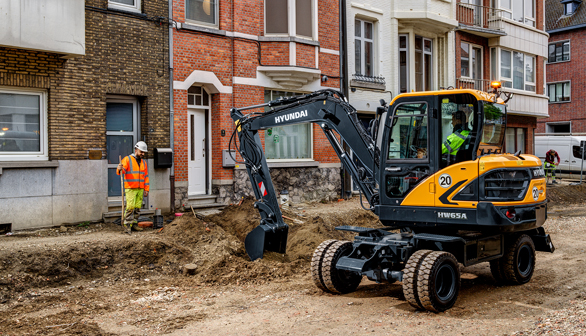

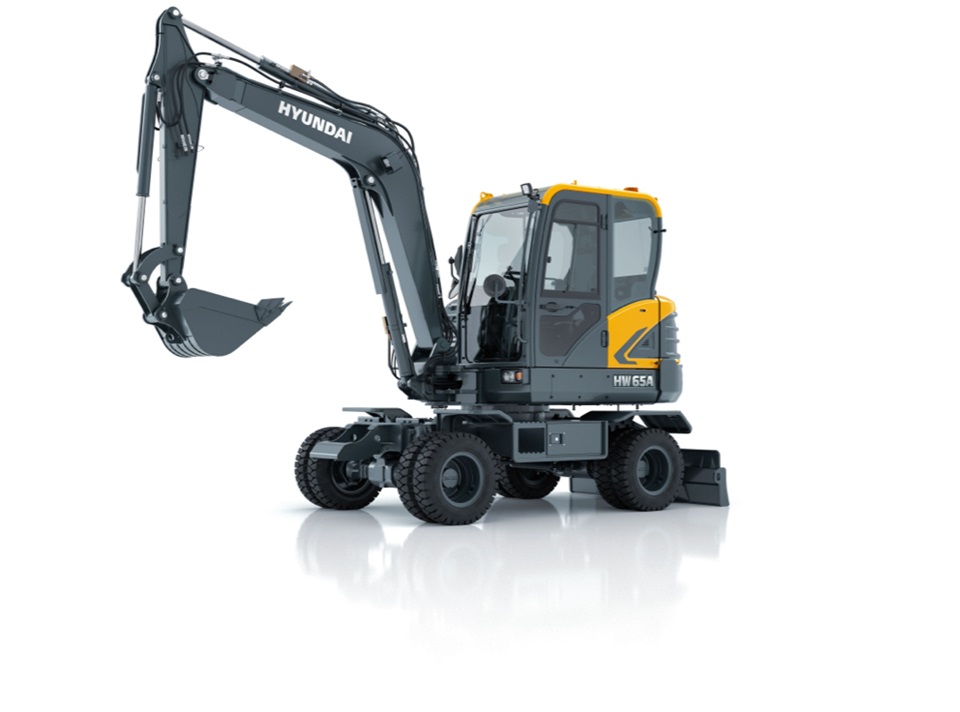

The 6.5-tonne HW65A is equipped with our very own Stage V Hyundai engine which greatly enhances fuel efficiency while optimising performance. With a choice of single or twin tires, improved operator comfort in the cabin, which includes a new dashboard as well as proportional joysticks, it’s highly productive. With many other improvements to safety, durability, servicing and operator comfort, the new HW65A is a compact machine with big performance in many applications.
Reasons to choose the HW65A
Greater productivity
With its powerful Hyundai Stage V engine, improved control and high efficiency, the HW65A is one highly productive machine.
- High powered Stage V Hyundai engine delivers more peak torque of 248 Nm and 66HP
- High-quality RCV lever greatly improves operability.
- 9% improvement in driving fuel efficiency compared to the previous model.
- Proportional joysticks as standard improve fine control.
- Increased swing speed and swing torque are ideal for working with a Tiltrotator.
- Optional double tyres enhance stability when working.
Lower cost of ownership
With our powerful Hyundai Stage V engine delivering best-in-class fuel economy with no additives (such as AdBlue) required, cost of ownership has been much reduced.
- Engine Auto-idle feature saves fuel, reduces noise and cuts exhaust emissions.
- 9% improvement in fuel economy compared to the previous model.
- Proportional joysticks as standard improve fine control.
- Increased swing speed and swing torque are ideal for working with a Tiltrotator.
- Optional double tyres enhance stability when working.
Greater comfort
The HW65A has a driver-friendly cab design with heated seat and air conditioning plus many new features that make it a comfortable place to work.
- New 7-inch touchscreen monitor with anti-theft device.
- Heated seat and powerful air conditioning performance.
- Push button ignition allows drivers to start the machine without having to use a key.
- Jog Dial Module is used to operate accelerator, remote air conditioner controller and instrument cluster using an ergonomic shuttle-type controller.
- Bluetooth radio and reduced interior sound level.
Greater durability & serviceability
With major parts protected from damage and easy access for servicing, the HW65A has been designed for greater reliability and less downtime.
- Blade, axles, boom and engine hood are shielded from possible damage.
- The lower frame and undercarriage have passed stringent tests for working in tough environments.
- Hi-grade high-pressure hoses, heavy-duty axles and improved layout of cowl prolong lifespan.
- A double-layered air cleaner prolongs engine life by filtering dust and other particulates.
FAQs about the HW65A wheeled excavator
Does the HW65A comply with the European stage V emission levels?
Yes. Its high performance engine delivers better productivity and fuel efficiency while meeting EU Stage V emissions regulations
Does the HW65A integrate with Hi Mate?
Yes. Hyundai’s innovative Hi MATE telematics system enables full monitoring of machine activity and performance.
What is the operating weight of the HW65A?
The operating weight is 6.5 tonnes.
Is it compatible with a Tiltrotator?
Yes. Increased swing speed and swing torque are ideal for working with a Tiltrotator.
