13400 kg
Engine Model
Cummins B6.7
Engine Power
116 kW
Bucket Capacity
2.3 cubic meter
Technical details
Digging Force:
Breakout Force: 11940 kg
Driving & Braking:
Max. Travel Speed (high:) 40 km/h
Tipping Load: 10100 kg
Dumping Height: 2795 mm
Engine:
Max. Torque: 1300 rpm
Product Overview

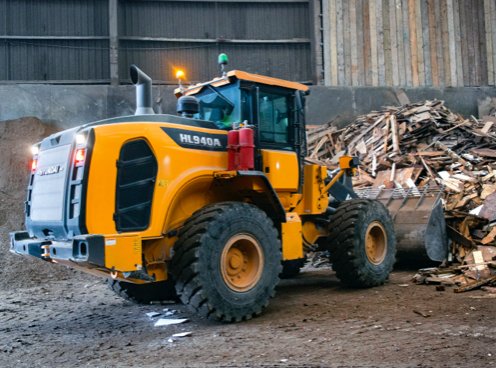

Featuring impressive power and torque, matched with carefully selected technologies that help you to work more efficiently and economically, this versatile loader opens up a world of new possibilities. The HL940A’s reliable Cummins B6.7 Stage V engine delivers all the power you need to tackle heavy-duty work in extreme conditions. Its strong performance at low speed is complemented by a range of technologies that enhance fuel efficiency while keeping harmful emissions to a minimum.
Reasons to choose the HL940A
Boost your productivity
Strong performance at low speed is complemented by a range of technologies that enhance fuel efficiency while keeping harmful emissions to a minimum.
- All-in-one exhaust aftertreatment system cuts emissions and operating costs while enhancing reliability and simplifying maintenance.
- Smart Power mode reduces fuel consumption by adjusting the engine speed in heavy load work like digging.
- The newly developed parallel z-bar linkage provides perfect vertical lift function with high tilt forces.
- Highly accurate automatic/manual cumulative weighing system helps you to manage production more efficiently in any environment.
- The Eco Gauge shows you engine torque, fuel efficiency and guidance on economical operation while you work.
- An Eco Pedal allows you to switch the power operating range easily within the optimal fuel consumption range.
A cab designed around you
The HL940A cabin was designed as a productive, stress-free working environment that fits every operator perfectly.
- State-of-the-art noise and vibration reduction technology achieves a sound level of only 68 dB, one of the lowest in this machine category.
- The air conditioning maximises heating and cooling performance by optimising air flow.
- The instrument panel is optimised to provide quick, easy access to machine status information as you work.
- Optional ride control system reduces pitching of the wheel loader body and bucket for more comfortable operation and reduced spillage.
- An air suspension seat and seat heating are available as options.
- The entertainment system includes a radio, integrated Bluetooth technology and a built-in microphone for safer, hands-free call handling during your working day.
Built for increased uptime
The HL940A is a tough, durable machine that minimises downtime for repairs and maintenance, so you can stay on schedule and protect your profits.
- High-grade hoses with outstanding resistance to heat and pressure provide maximum durability, even in demanding conditions.
- A dependable wide-core and fin air cooler prevents performance degradation caused by contamination. It is also equipped with a reversible fan to eliminate dust and debris.
- A turbo pre-cleaner is available as an option to further extend the replacement cycle.
- Durable aftertreatment system is protected by a robust support and shock absorbing system to prevent failure during operation.
- Uptime has been increased by extending the standard service interval for the oil and oil filter to 500 hours and by adding an optional autogrease system.
Easy servicing
The HL940A is designed to make maintenance as convenient as possible and all components and materials have been specially selected to ensure a long, trouble-free life.
- The tilt-back engine hood is fully retractable and can be opened electrically for easy access to the sealed engine room and cooling room.
- The brake discs are manufactured using a durable sinter material to suppress generation of heat and vibration and extend the lifetime of the brakes.
- The air conditioning system is installed on the right side of the cabin for convenient maintenance and filter replacement. It features a high-capacity inner filter and a specially selected filter material for superior performance.
Edition 25 Wheel Loaders Loaded with Brand New Safety Features
Hyundai Construction Equipment has developed two new wheel loader safety advances – AAVM+ and Clearview X – as part of its Edition 25 update. These innovative visibility advances improve safety on site, making it easier for operators to work efficiently and productively in all weather conditions.
AAVM+
Initially available on HL940A, HL955A, HL970A and HL975 Edition 25 loaders, AAVM+ takes Hyundai’s Advanced Around View Monitoring system to a new level, by combining a rear-mounted radar sensor and a steering angle sensor, with the multiple-camera AAVM set-up.
Clearview X
Clearview X is an innovative twin camera system, that in effect helps the operator to ‘see through’ the bucket on a wheel loader. Using cameras mounted on the top and bottom of the machine, Clearview X displays the combined image in real time on the monitor in the cab.
FAQs about the HL940A wheel loader
How wide is the HL940A wheel loader?
The width of the HL940A is 2,450mm (8ft).
What is the height of the HL940A to the top of the cabin?
To the top of the cabin, the HL940A is 3,300mm (10ft 10″).
What is the service interval on the fuel filter?
500 hours
What is the bucket capacity of the HL940A?
The heaped bucket capacity of the HL940A is 2.30 m³
