HD130A

Manufacturer

Description

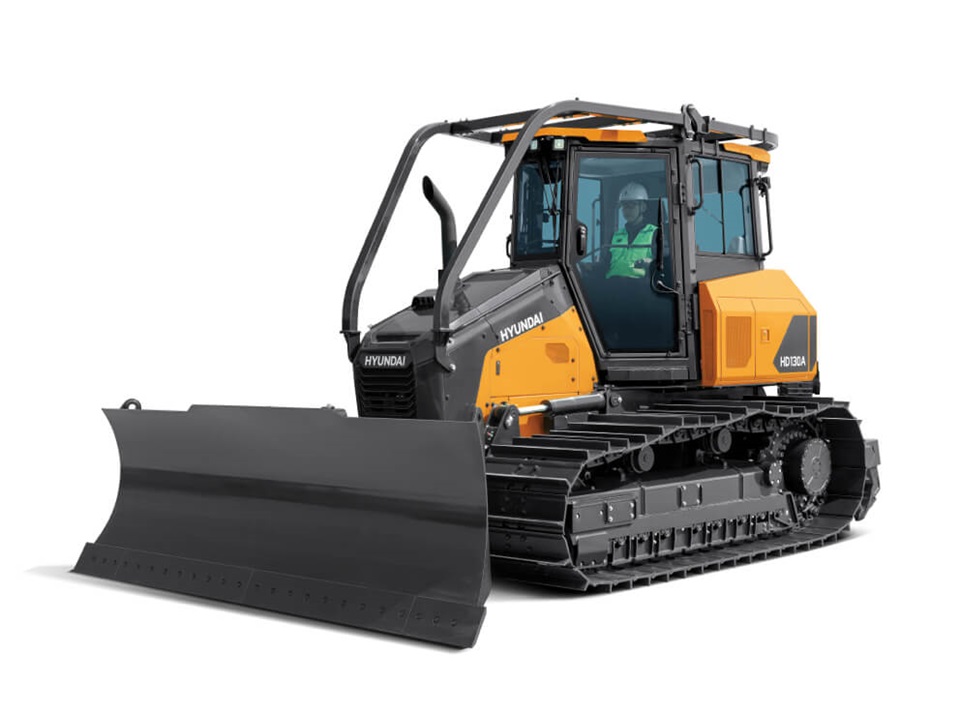

The new Hyundai HD130A dozer pushes the limits of what you can expect from a powerful earthmoving machine. With best-in-class horsepower and machine weight, you get more power to the ground and superior tractive effort.

Operation Weight
14500 (XL) / 15300 (LGP) kg

Engine Power
117 kW

Technical details

Driving & Braking:
Max. Drawbar Pull: 22000 kgf

Coolant & Lubricant Capacity:
Hydraulic System (including tank): 132 l/min

Hydraulic Motors:
Swing: 2700 mm

Engine:
Engine Emission: Stage V

Product Overview

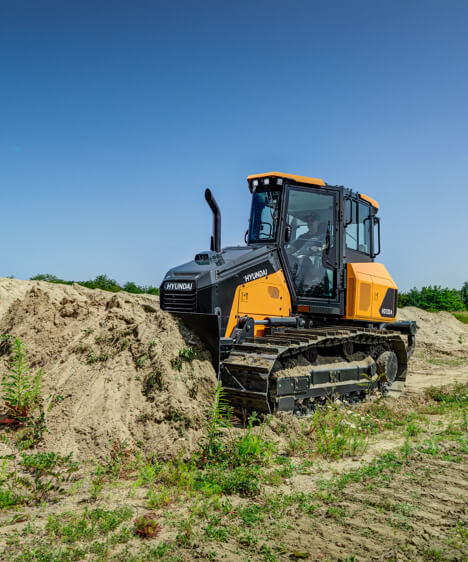

The new Hyundai HD130A XL has a narrow width, while the HD130A LGP provides lower ground pressure. Both dozers deliver best-in-class horsepower and weight for better traction to push more material, while Smart Technologies and unbeatable visibility help operators of all skill levels achieve greater grading precision. A highly durable undercarriage stands up to the toughest conditions to get more work done, while lowering maintenance costs.

Reasons to choose the HD130A Dozer

Trust Hyundai for Productivity

With best-in-class horsepower and machine weight, you get more power to the ground and superior tractive effort. This helps you push more material and maximise productivity.

Max forward and reverse speeds allows for quick and easy movement around the jobsite.
A 132L/min hydraulic pump delivers up to 22,000kgf of traction force.
A two-speed transmission enables a maximum travel speed of 9.0km/h with a 35° (70%) gradability.
A 3.54m3 XL blade is standard, while a 4.18m3 capacity LGP blade is available as an option.
Ripper attachment as standard features parallel linkage that helps maintain a constant angle to the ground regardless of the height.

Trust Hyundai for Efficiency

Designed for efficiency, the HD130A features an Eco Mode that reduces hydraulic pump power output for lighter grading tasks, cutting fuel consumption by up to 5%. Smart fuel-saving technologies like Auto Idle and Auto Shutdown prevent unnecessary idling, optimising fuel use throughout the workday.

Eco Mode, Auto Idle, and Auto Shutdown reduce fuel consumption and operating costs.
Tilt and angle adjustment makes it easier to work more efficiently, reducing the number of passes required to achieve grade.
Powered by a highly-efficient Perkins 4.4-litre diesel engine.
A standard 2D Blade Dozing Assist Function helps less experienced operators achieve precise grading results without requiring lasers or GPS control.

Trust Hyundai for Safety & Comfort

The HD130A is designed to provide operators with a comfortable, intuitive, and highly efficient working environment. Full-height glazed doors on both sides, along with a hidden engine air pre-cleaner, maximise visibility to the blade. A range of advanced features, including a rear-view camera, LED work lights, and an intuitive touchscreen display, ensure ease of operation.

Spacious ROPS/FOPS cab with CabSus mount, full-height glazed doors, and an optimised engine canopy.
A 2-way proportional auxiliary joystick, fully electrohydraulic controls and pedal control enable effortless operation.
Rear-view camera, touchscreen display, Bluetooth audio system, and safety features like an automatic shut-off and seatbelt alarm.
GPS-based remote monitoring for real-time performance tracking, maintenance alerts, and dealer support.
Tapered, slim engine canopy that maximises visibility to the blade tips.

Trust Hyundai for Serviceability

The Hyundai HD130A is designed for easy maintenance and long-term reliability, ensuring maximum uptime on the job site. Daily service points are conveniently accessible from ground level, while wide-opening access doors provide clear entry to key components.

Ground-level service points and wide-opening access doors for hassle-free inspections.
Rear-tilting cab structure allows direct entry to major hydraulic and drivetrain components.
Heavy-duty design with single and double-flanged rollers to maximise longevity.
Optional Hi-MATE remote management system helps provide the highest level of service and product support available.
